3 phase Air cooled Servo voltage

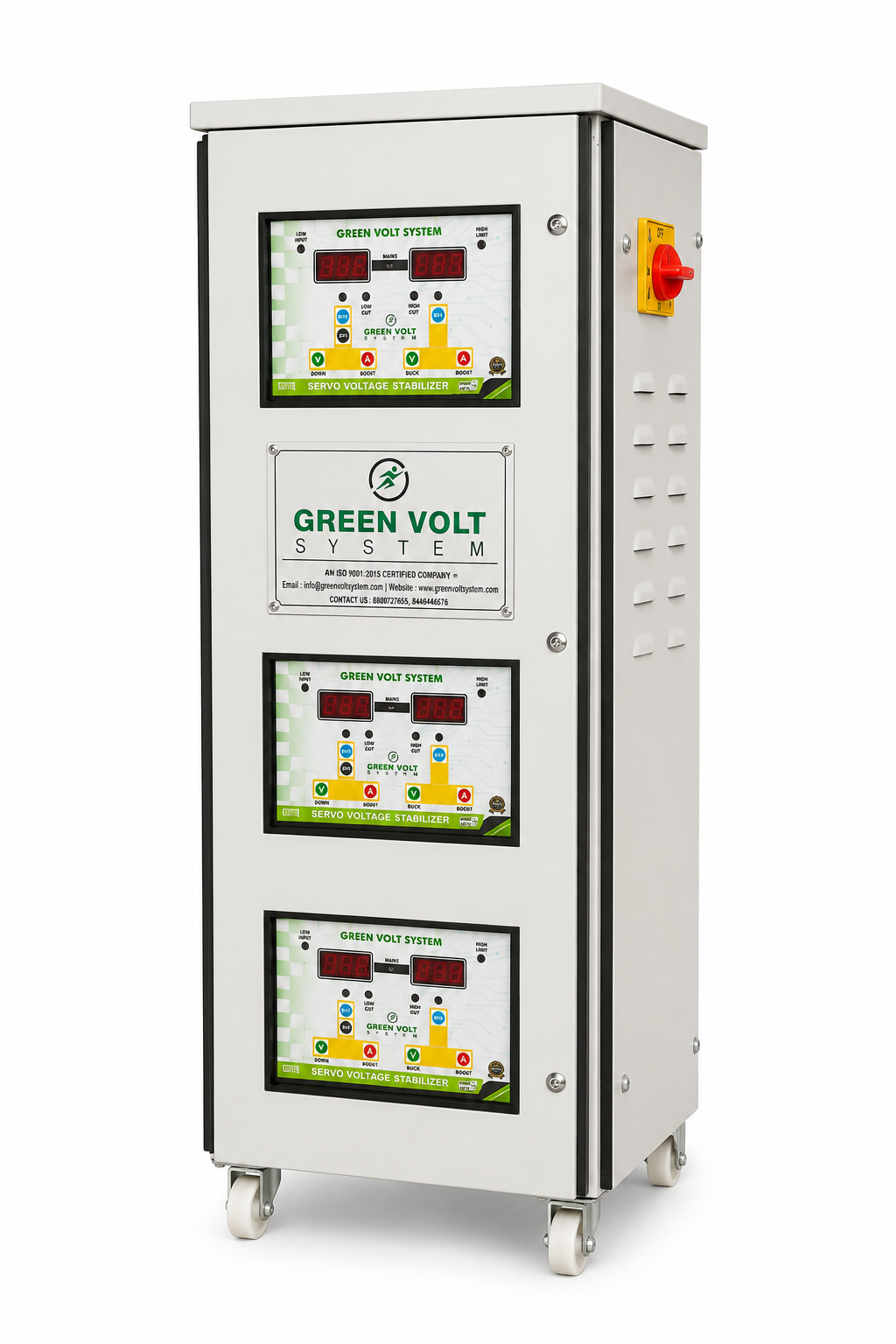

3 Phase Air Cooled Servo Voltage Stabilizer
The 3 Phase Air Cooled Servo Voltage Stabilizer is engineered for reliable power correction across commercial and industrial environments. With its advanced servo motor technology and air-cooled design, it provides precise voltage regulation without the need for oil, making it lightweight, eco-friendly, and low-maintenance.
Designed to handle unbalanced loads and severe input voltage fluctuations, this stabilizer ensures steady output voltage for CNC machinery, elevators, medical equipment, HVAC systems, and other sensitive 3-phase applications. Its robust design ensures efficiency, safety, and durability for long-term operations.
Key Benefits
- Maintains stable 3-phase output under varying loads.
- Protects costly equipment from over/under voltage issues.
- No oil usage – eco-friendly and minimal maintenance.
- Ensures high efficiency and reduced downtime.
- Extends life of machinery and reduces energy costs.
Salient Features
- Microcontroller-based automatic control system.
- Digital LCD display for Input/Output Voltage, Load & Frequency.
- Wide input voltage range for varied power conditions.
- Correction speed greater than 35 V/sec.
- Inbuilt overload, short-circuit, and high/low voltage protection.
- Efficiency ≥ 98% with negligible waveform distortion.
Technical Specifications
| Type | 3 Phase Air Cooled Servo Voltage Stabilizer |
|---|---|
| Construction | Indoor (Outdoor on request) |
| Input Voltage Range | 340V – 480V / 300V – 500V |
| Output Voltage | 400 V ±1% |
| Correction Speed | > 35 V/sec |
| Efficiency | ≥ 98% |
| Protections | Overload, Under/Over Voltage, Short Circuit |
| Display | Digital LCD with I/P & O/P Voltage, Frequency, Load |
| Response Time | 10 ms |
| Rating | 10 kVA – 200 kVA (custom options available) |
| Compliance | IS:9815 Standard |
Applications
- CNC Machines & Industrial Plants
- Commercial Buildings & Offices
- Hospitals, Labs & Diagnostic Centers
- IT Infrastructure & Data Centers
- HVAC Systems, Elevators, and Printing Units
Custom Options
- Wide/Narrow input voltage range choices
- Remote monitoring and IoT compatibility
- Outdoor models with weatherproof enclosures
- Surge protection devices (optional)
